Yamaha
wr450, 04-06 |
|
|
Yamaha
wr450, 04-06 |
| Keihin FCR Carb Recalibration Kits - patented Factory Pro HDJ style | ||
|
pn: CRB-CY46-1.7-RK $99.95
|
Now with the new, even cleaner running, patented
The wr450 carb recal kit was designed with as much care and attention to detail as we give to our EC997 dynamometer and test routines, our Shift STAR shift improvement kits, our Billet Engine Covers and all of the other products that the quickest road racers in the USA and World used to collect a total of 9 WERA and F-USA national Championships - along with the Suzuki Cup World Champion, Rob Jensen. We've now entered the off-road arena to bring some new, exciting, well proven concepts, such as our easily tuneable "HDJ" style jet kits and several other things that we've picked up along the way. One of the improvements was dyne systems design
and test routine design - We have been saying for years that inertia
dynos were misleading and now, these new "HDJ" carb kits show how much
better the EC997 load dynos are
than inertia dynos
when it comes to developing any performance products. Sounds a bit egotistical?
Perhaps it sounds that way - but, I think that we've got quite a few
local Norcal racers that we've done fine tuning work for that would
agree with us. The Factory Pro HDJ kits, designed by Marc Salvisberg, will run more evenly over a wider temperature and altitude range than any other carb kit and will produce 3% to 8% better power than another carb with the "best main jet" in it, when properly tuned and tested under a real load. This does not mean an inertia dyno - though, power will be better with a dealership level dyno, also. So - Here's the power - Buy it! Thanks! 800 869-0497
Call: |
|
| Billet Engine Cover | ||

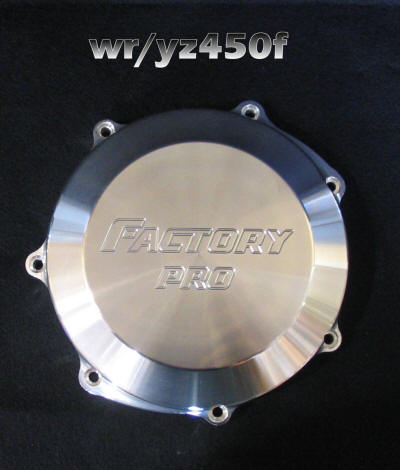

 Billet Engine Cover
Awesome Billet Clutch Cover!!!! Like our CRF, DR and KLX Covers
- Virtually Indestructible! Machined from a solid block of incredibly strong, fine grain,
extruded aluminum alloy in northern California on the latest in high
performance CNC machining centers. Unlike the stock, cast aluminum cover - the Factory Pro cover,
almost 99% of the time, prevents the brake pedal from punching a hole
- You'll make it home!! and it looks bitchin'! $189.95
Intro Special!
|
||
| Billet Engine Cover | ||
|
in progress |
~$49.95 USD | |
| Ignition Timing Kit | ||
|
in progress |
~$49.95 USD | |
| Improve your shifting | ||
Shift STAR Installation pics
 |
Remove the clutch cover. | Remove the clutch
assembly (use your shop manual) |
 |
Remove the little top hat collar and don't lose it. | |
 |

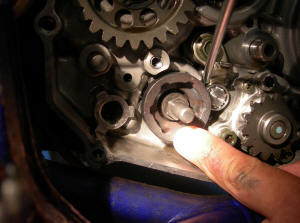

Pinch the pawls together and gently remove the pawl holder. Hold around the outside so the pawls, springs and plungers stay together. | |
 |

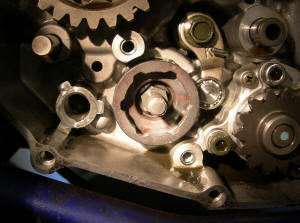

Turn the star till it reaches
the stop (it's either 6th or 1st gear). Turn the clutch shaft to get
it to go into the "next" gear. Unscrew the center stud - it takes a deep 12mm socket.
|
|
 |
||
 |
Use a 10mm socket and remove
the 6mm pivot bolt for the stock detent arm.
|
|
 |
This is what comes out. You will replace the detent arm and the spring with new Factory Pro parts. |
|
 |
Put in the new Factory Pro
Microbearing Detent Arm and new heavier duty spring. A good hint is to Loctite the pivot bolt with Blue Loctite. Not absolutely required, but a nice touch. |
|
 |
Lever the arm out and slip in...... | |
 |
the new Factory Pro Detent STAR. Install the center stud. | |
 |
There's the new detent arm and the new preproduction detent STAR. | |
 |
 |
Here's how the shift pawl holder
is assembled. These are the spring loaded plungers. |
 |
 |
Next, install the pawls. |
|
|
Squeeze the pawls in and slip into the ID of the Detent STAR. |
|
|||||||||
|
